BINDの設定をする

はじめに

自宅にDNSないと不便ですよね。ということでBIND9の設定をしますよ。設定するサーバはUbuntu 9.04です。

作業ログ

BINDのインストール

BIND9をインストールする。

$ sudo apt-get install bind9
...
グループ `bind' (GID 126) を追加しています...
終了。
システムユーザ `bind' (UID 115) を追加しています...
新しいユーザ `bind' (UID 115) をグループ `bind' に追加しています...
ホームディレクトリ `/var/cache/bind' は作成しませんでした.
wrote key file "/etc/bind/rndc.key"
#
 * Reloading AppArmor profiles ...
   ...done.
 * Starting domain name service... bind9
   ...done.
named.conf.optionsの変更

ディストリビューションによって作法が違うけれど、Ubuntuでは/etc/bind/named.conf.* を変更する。まずは全体の設定としてnamed.conf.optionsを修正。

$ sudo vim /etc/bind/named.conf.options
options {
        directory "/var/cache/bind";

        // If there is a firewall between you and nameservers you want
        // to talk to, you may need to fix the firewall to allow multiple
        // ports to talk.  See http://www.kb.cert.org/vuls/id/800113

        // If your ISP provided one or more IP addresses for stable
        // nameservers, you probably want to use them as forwarders.
        // Uncomment the following block, and insert the addresses replacing
        // the all-0's placeholder.

        // forwarders {
        //      0.0.0.0;
        // };

        auth-nxdomain no;    # conform to RFC1035
        listen-on-v6 { any; };
        allow-query { any; };
        allow-transfer {
                127.0.0.1;
                192.168.1.0/24;
                192.168.11.0/24;
        };
        forwarders {
                8.8.8.8;
                8.8.4.4;
        };
};
named.conf.localの編集

続いて/etc/bind/named.conf.localの編集をしてzoneの設定をする。DNS複数立てるわけじゃないので、masterのみ。

//
// Do any local configuration here
//

// Consider adding the 1918 zones here, if they are not used in your
// organization
//include "/etc/bind/zones.rfc1918";

zone "jp.example.com" {
        type master;
        file "/etc/bind/jp.example.com";
};

zone "1.168.192.in-addr.arpa" {
        type master;
        file "/etc/bind/1.168.192.in-addr.arpa";
};

zone "11.168.192.in-addr.arpa" {
        type master;
        file "/etc/bind/11.168.192.in-addr.arpa";
};
zoneファイルの設定

次にnamed.zone.localで設定した各zoneに関するzoneファイルの設定をする。まずは正引きの設定。

$ sudo vim /etc/bind/jp.example.com
$TTL    86400
@       IN      SOA     jp.example.com.  ns.jp.example.com.(
                                      2005120201 ; Serial
                                      28800      ; Refresh
                                      14400      ; Retry
                                      3600000    ; Expire
                                      86400 )    ; Minimum
;
jp.example.com.          IN  NS  ns.jp.example.com.
ns.jp.example.com.       IN  A   192.168.1.2
spam.jp.example.com.  IN  A   192.168.1.2
egg.jp.example.com.    IN  A   192.168.1.4
ham.jp.example.com.     IN  A   192.168.11.100

続いて逆引きの設定。

$ sudo vim /etc/bind/1.168.192.in-addr.arpa
$TTL    86400
@       IN      SOA     jp.example.com.  ns.jp.example.com.(
                                      2004031901 ; Serial
                                      28800      ; Refresh
                                      14400      ; Retry
                                      3600000    ; Expire
                                      86400 )    ; Minimum
1.168.192.in-addr.arpa.       IN  NS   ns.jp.example.com
2.1.168.192.in-addr.arpa.     IN  PTR  spam.jp.example.com
4.1.168.192.in-addr.arpa.     IN  PTR  egg.jp.example.com

192.168.11.0/24の設定も実際はしますよ。

ポートの開放

なんか設定ファイルちゃんと編集したのに動かなかったから、おかしいなと思ったら必要なPort(53/TCPと53/UDP)が開いてなかった。

$ sudo nmap -sUT localhost

Starting Nmap 4.76 ( http://nmap.org ) at 2010-10-06 01:27 JST
Warning: Hostname localhost resolves to 2 IPs. Using 127.0.0.1.
Interesting ports on Stratos (127.0.0.1):
Not shown: 997 closed ports
PORT     STATE SERVICE
80/tcp   open  http
631/tcp  open  ipp
5910/tcp open  unknown
177/udp  open|filtered xdmcp
5353/udp open|filtered zeroconf

Nmap done: 1 IP address (1 host up) scanned in 0.29 seconds

Ubuntuなのでufw使って開ける。

$ sudo ufw allow 53/tcp
$ sudo ufw allow 53/udp
resolv.confの設定

ちゃんと設定したDNSを参照するように修正。

$ sudo vim /etc/resolv.conf
hosts
bind
domain jp.example.com
nameserver 192.168.1.2
bind9の再起動
$ sudo /etc/init.d/bind9 restart
 * Stopping domain name service... bind9
   ...done.
 * Starting domain name service... bind9
   ...done.
テストする

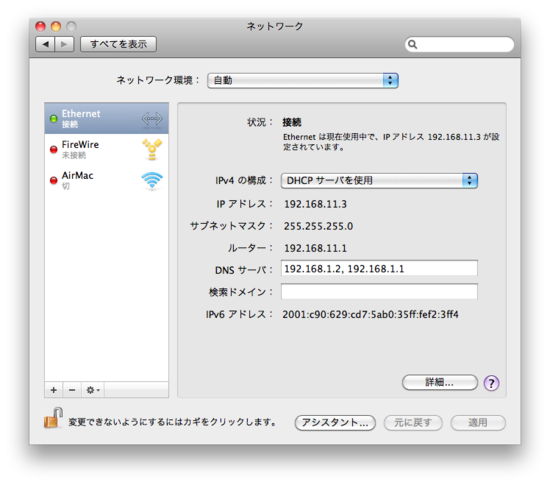

MacからDNSサーバを参照して別のマシンを参照出来るかテストする。AirMacを切ってEthernetに今起動したDNSを追加する。(システム環境設定 > ネットワーク > Ethernet)Macの名前解決がいまいち分からないけど、先頭に追加しておかないとキチンと動作しない。
f:id:ymotongpoo:20101006014752p:image

以下テストのログ。

$ ifconfig
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 16384
	inet 127.0.0.1 netmask 0xff000000
	inet6 ::1 prefixlen 128
	inet6 fe80::1%lo0 prefixlen 64 scopeid 0x1
gif0: flags=8010<POINTOPOINT,MULTICAST> mtu 1280
stf0: flags=0<> mtu 1280
en1: flags=8823<UP,BROADCAST,SMART,SIMPLEX,MULTICAST> mtu 1500
	ether 58:b0:35:73:9c:0e
	media: <unknown subtype> (<unknown type>)
	status: inactive
fw0: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 4078
	lladdr d8:30:62:ff:fe:ec:5f:ba
	media: autoselect <full-duplex>
	status: inactive
en0: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
	ether 58:b0:35:f2:3f:f4
	inet6 fe80::5ab0:35ff:fef2:3ff4%en0 prefixlen 64 scopeid 0x6
	inet 192.168.11.3 netmask 0xffffff00 broadcast 192.168.11.255
	inet6 2001:c90:629:cd7:5ab0:35ff:fef2:3ff4 prefixlen 64 autoconf
	media: autoselect (1000baseT <full-duplex,flow-control>)
	status: active
vboxnet0: flags=8842<BROADCAST,RUNNING,SIMPLEX,MULTICAST> mtu 1500
	ether 0a:00:27:00:00:00

$ dig @192.168.1.2 egg.jp.example.com

; <<>> DiG 9.6.0-APPLE-P2 <<>> @192.168.1.2 egg.jp.example.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 36304
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 1

;; QUESTION SECTION:
;egg.jp.example.com.	IN	A

;; ANSWER SECTION:
egg.jp.example.com. 86400	IN	A	192.168.1.4

;; AUTHORITY SECTION:
jp.example.com.	86400	IN	NS	ns.jp.example.com.

;; ADDITIONAL SECTION:
ns.jp.example.com.	86400	IN	A	192.168.1.2

;; Query time: 2 msec
;; SERVER: 192.168.1.2#53(192.168.1.2)
;; WHEN: Wed Oct  6 02:20:00 2010
;; MSG SIZE  rcvd: 90

$ nslookup egg.jp.example.com
Server:		192.168.1.2
Address:	192.168.1.2#53

Name:	egg.jp.example.com
Address: 192.168.1.4
